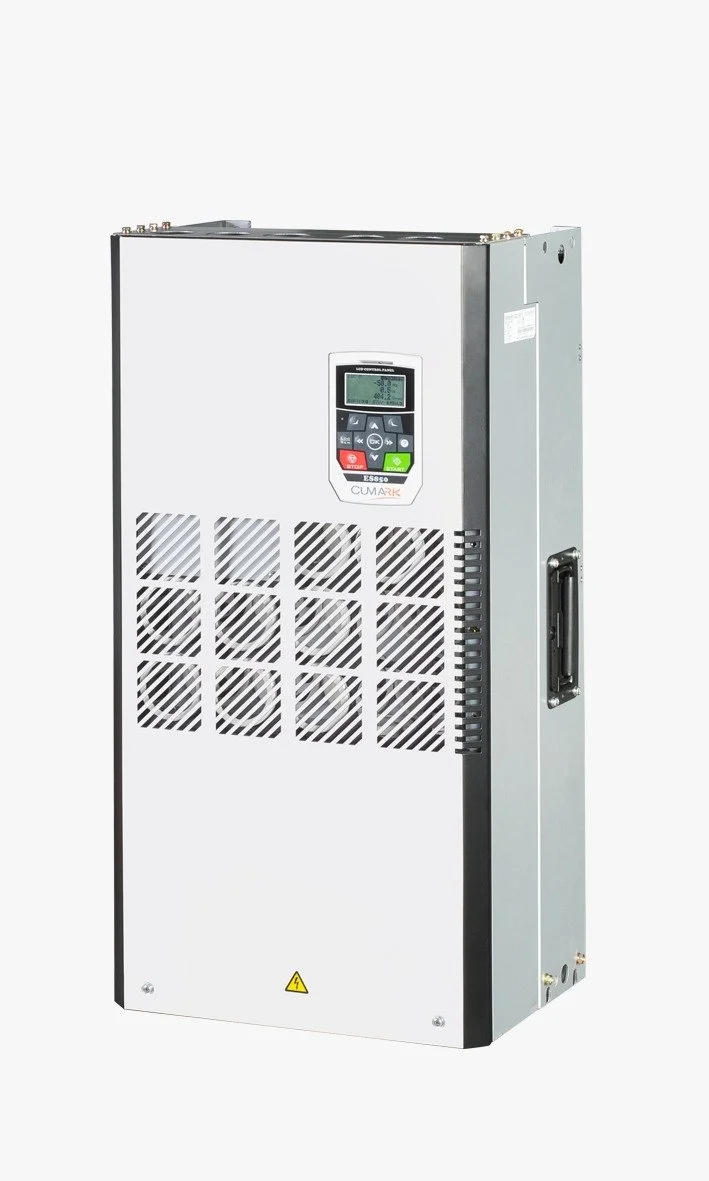

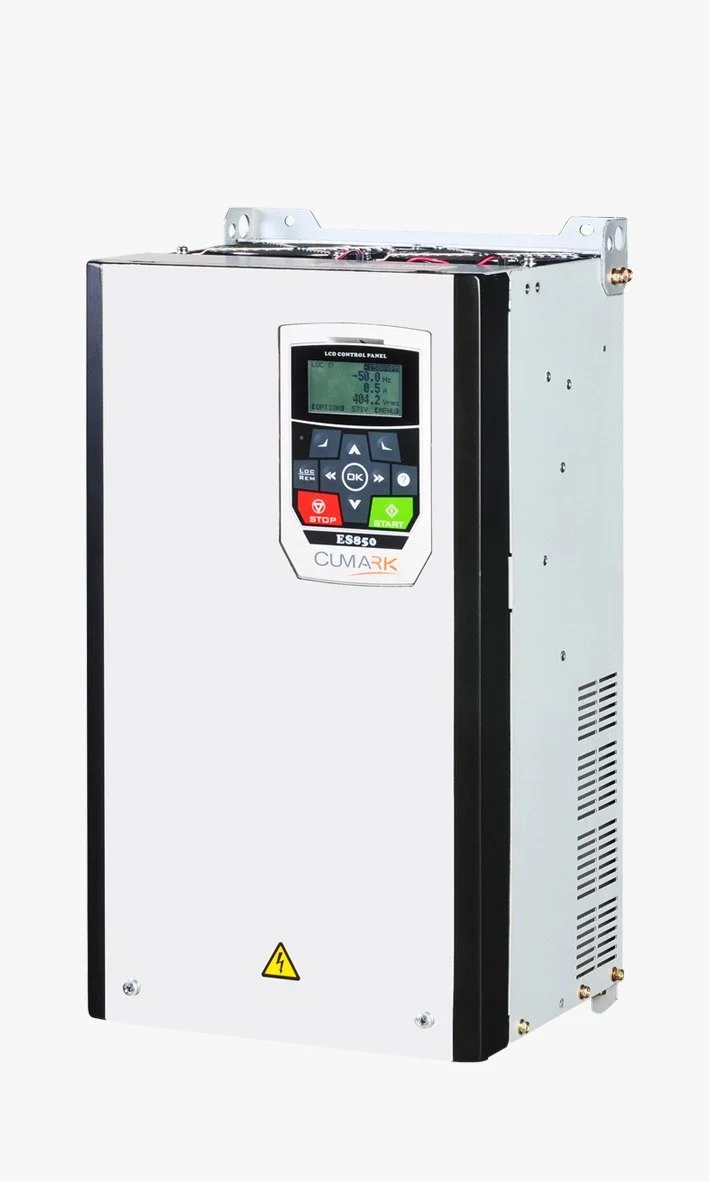

AC Drive 480VAC 3P Input, 7.5HP to 900 HP not UL Listed
AC Drive 480VAC 3P Input, 7.5HP to 900 HP not UL Listed
from $561.96
Selection of ES560 General Purpose AC Drive Products:
High reliability & Easy operation and Support SVC/ scalar control, Compatible permanent magnet synchronization & 3-phase asynchronous motor with Built in digital LED keyboard optional Intelligent LCD display and Modular compact structure design
When a short-term power failure occurs in the power grid, the drive will run at a reduced speed. After the power grid is on, the drive will back to normal working status..
Timing Control
Timing control function. The time range and precision is 0.0-6500.0(min).
Power Failure
In the case of unexpected power failure, the inverter can be guaranteed to stop steadily
Communication Bus
Standard built-in Modbus, can be extended to CANopen, Profibus-DP, Profinet, EtherCAT bus communication
Inputs / Outouts Inteface
Command Input Mode
Control keyboard input, control terminal input, bus communication input, which can be switched mutually
Speed Reference Mode
Digital giving, analog voltage (current) giving, pulse giving, bus communication giving and PID giving, which are mutually switched.
Input Terminals
The followings are included in standard configuration 7-digital input terminals, where Dl7 supports the maximum of 50 kHz high-speed pulse input. 3-analog input terminals (where, at least 2 supports 0-10V voltage or 0-20mA).
Output Terminals
The followings are included in standard configuration： 1 high-speed pulse output terminal (supporting 0-50 kHZ square signal output); 2-digital output terminals; 2 relays output terminals; 2-analog output terminals (supporting0~10V output or 0~20mA).
Display
Man-machine interface
Removable LED keypad as standard configuration, LCD keypad is optional
Parameters Duplication
Rapidly duplicating parameters via the LCD control keyboard
Application Environment
Application Site
Indoor, free of direct sunshine, dusts, corrosive gases, flammable gases, oil mist,
Altitude
When the altitude is 0~1000m or 1000~4000m, the capacity is reduced by 1% as the altitude rises by 100m. (consult professionals for more accurate values)
Operation Ambient Temperature
-10℃ to+40℃ (when the ambient temperature is 40℃-55℃, the drive is automatically derated to achieve self-protection)
Relative Humidity
Less than 95%RH. No droplets condensed (condensation)
Sinusoidal Vibration
(IEC 60068- 2/ - 6.TestFc) Max.0.1mm (5 to 13.2Hz) ; max.7m/S 2 (13.2 to 100 Hz) sinusoidal vibration (F1-B7) Max.0.1mm (10 to 57Hz) ; max.l0m/S2 (57 to 150 Hz) sinusoidal vibration (B8-B9)
Impact
Not allowed (during operation); with packing : 100cm@F1,F2,F2A ; 76cm @F3,B4, 46cm@B8-B9
Storage & Transportation Temperature
−40℃to+70℃（-40to+158°F)
Protection Grade
Electrical cavity full closed design for small- and medium-power models
Cooling Mode
Forced air cooling of the interior fan. The air flows from bottom to top. Air-cooled radiator.
