Custom electrical Panel design & Fabrication

If you need a control panel custom design, IndustLabs fulfills custom projects that require engineering expertise from initial design to final production.

We provide a custom quote within 48 hours of receiving your specs and requirements.

Whether you’re a manufacturing company, engineering firm, or OEM, having the capacity to build panels in-house doesn’t mean panel-building isn’t draining your resources.

IndustLabs delivers high quality panels so that you can focus on your core business. We solve engineering challenges and build panels so that you don’t have to. Find out what we’re capable of and submit your specs to get your quote within 48 hours.

The Electrical Engineers at IndustLabs will custom design industrial controls to your specific needs, including:

  • Build-to-print or custom builds

  • Complete turnkey solutions

  • OEM builds & Private Labeling

  • Application evaluations

  • Conceptual design

  • Hardware & component specification

  • Back Panel layout & design

  • PLC, HMI, & PC-based control systems

  • Panel fabrication

  • In-house testing

  • Live system testing

  • Custom programming

  • Design-build

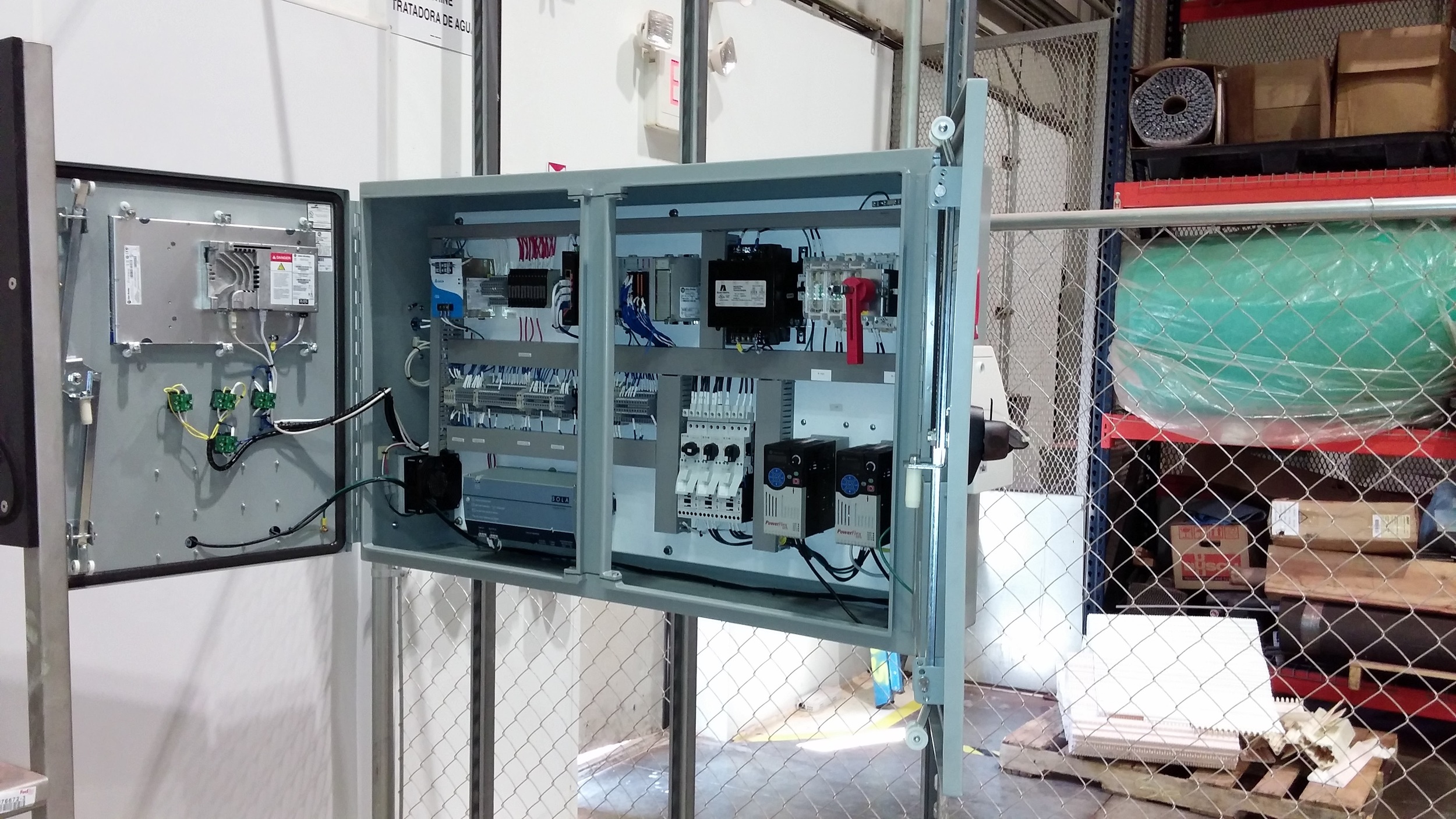

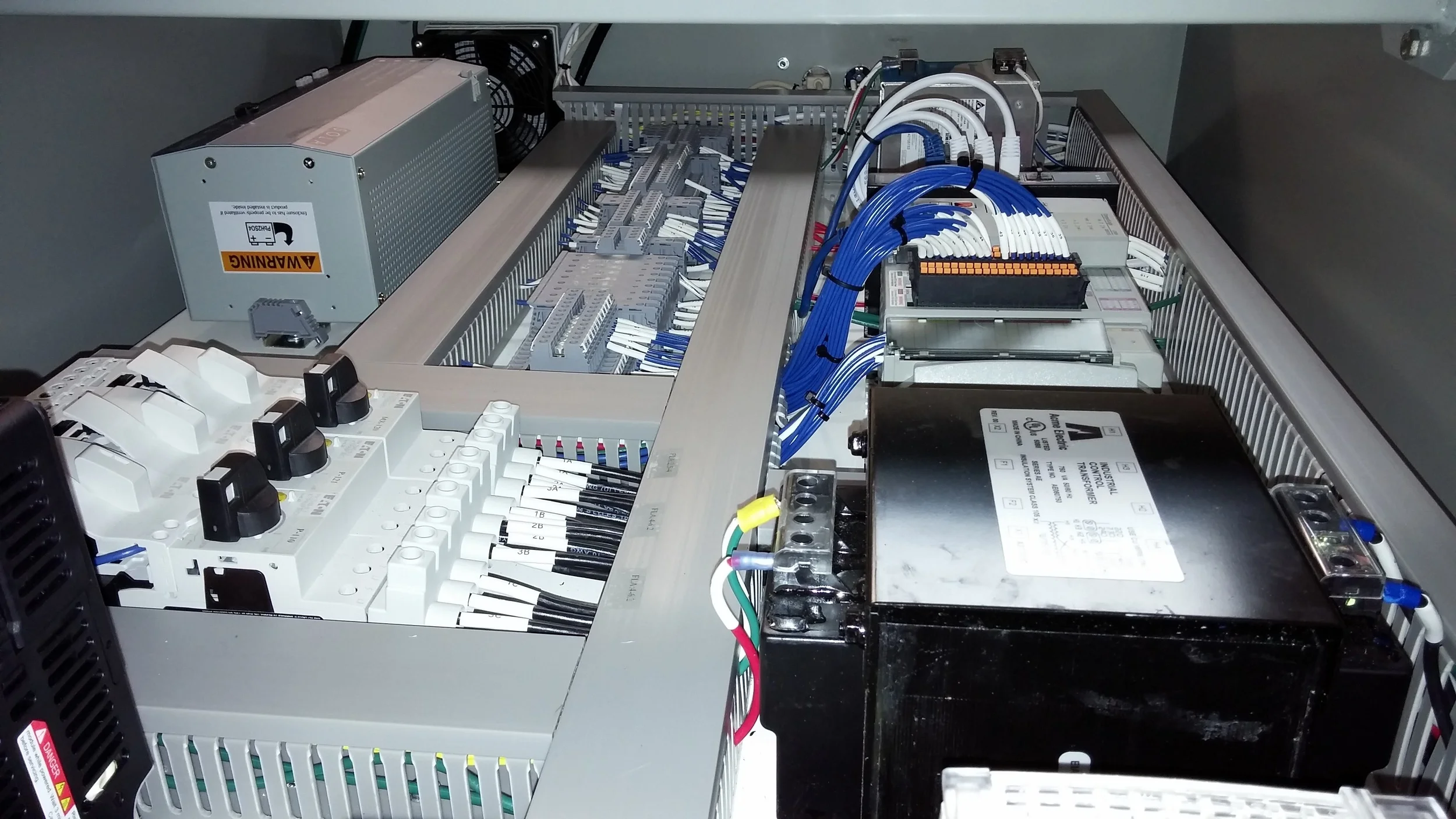

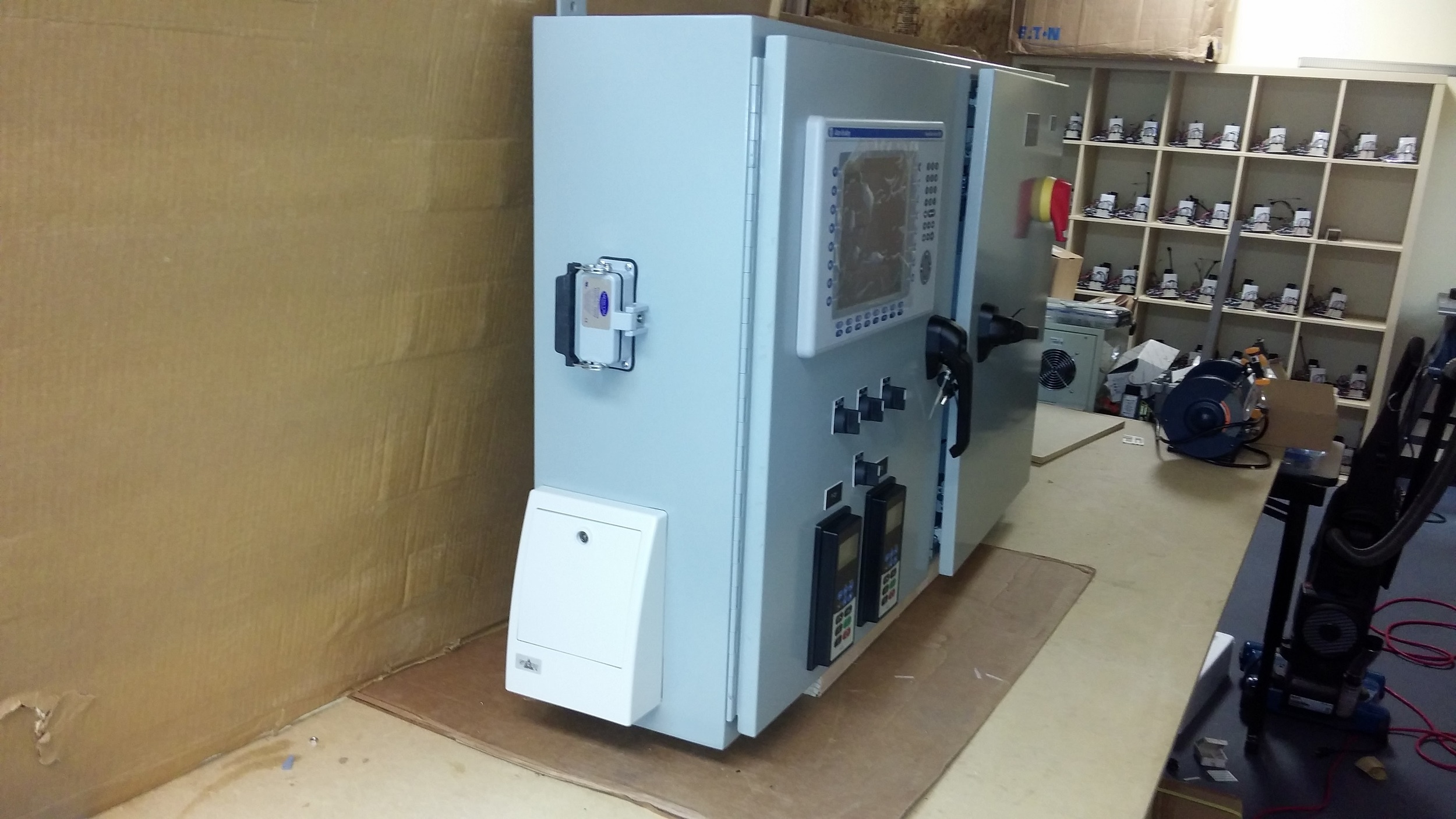

PLC Control panels

Programmable logic controller (PLC) control panels or also known as PLC Automation Panel are one of the most important and efficient kinds of control panels. Which are generally used in variety of electronic and electrical circuit fittings. PLC Control Panels we manufacture are highly capable of giving higher output at less power consumption. Integrated with solid PLC logic and flawless PLC hardware programming.

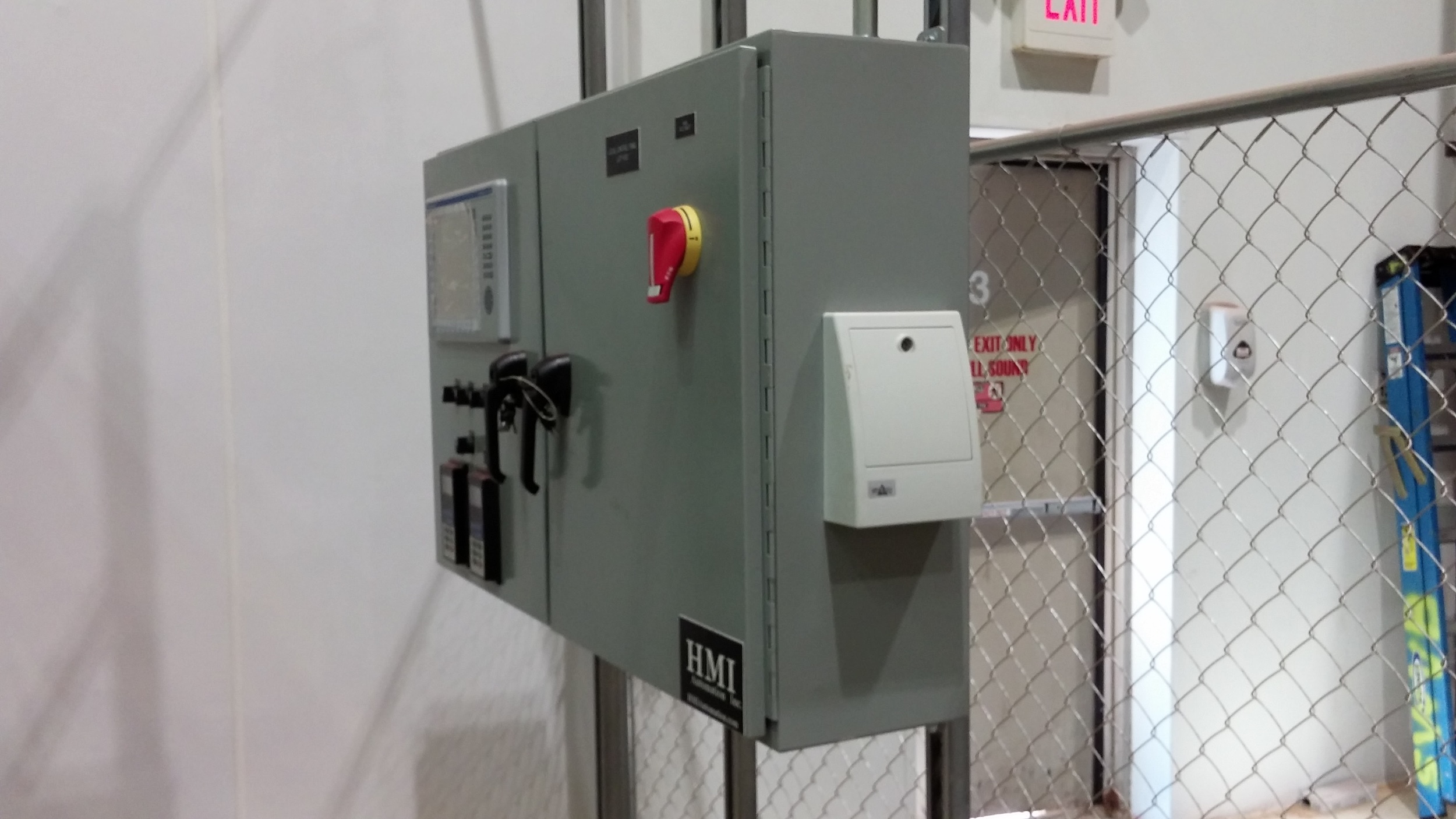

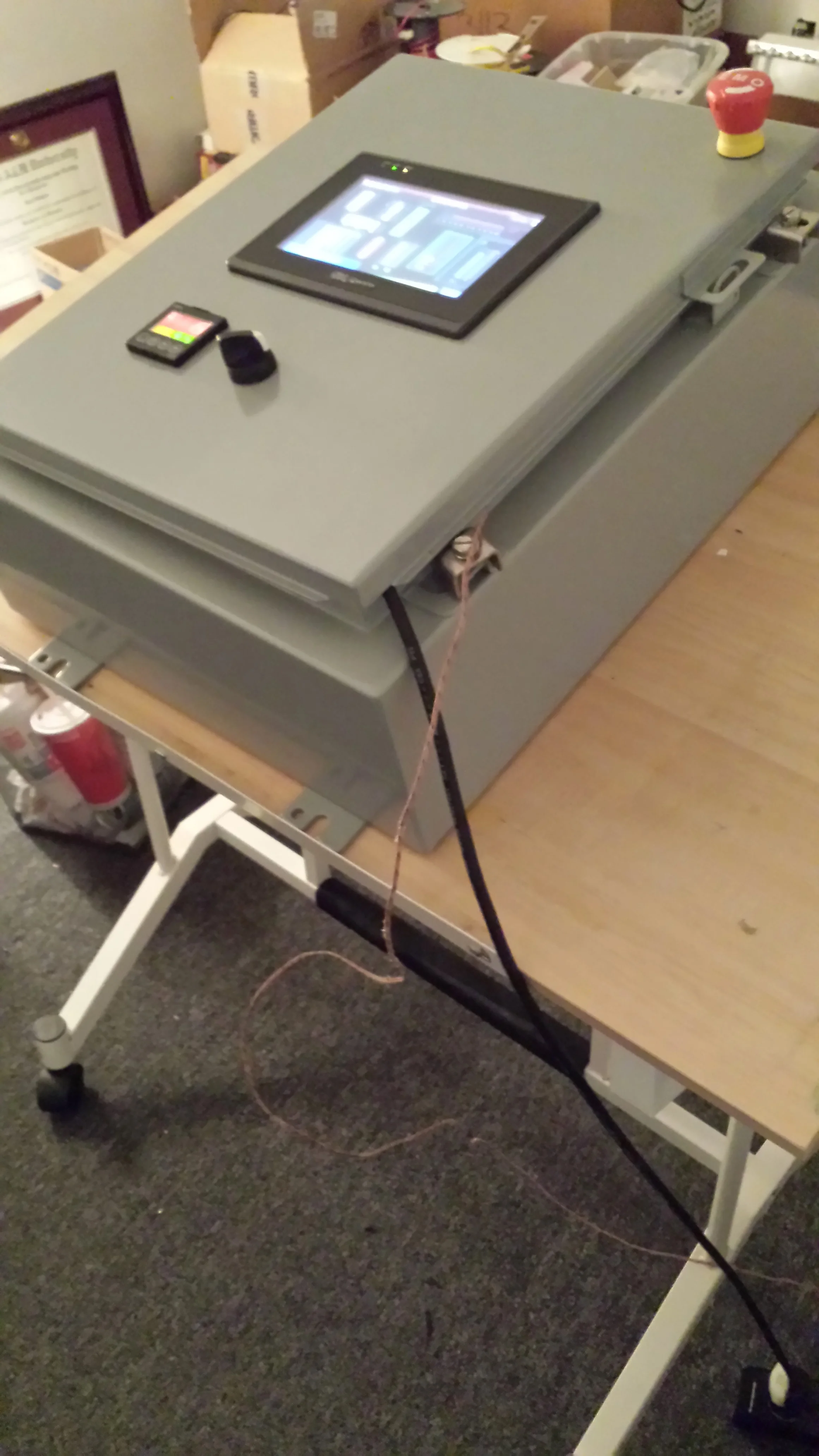

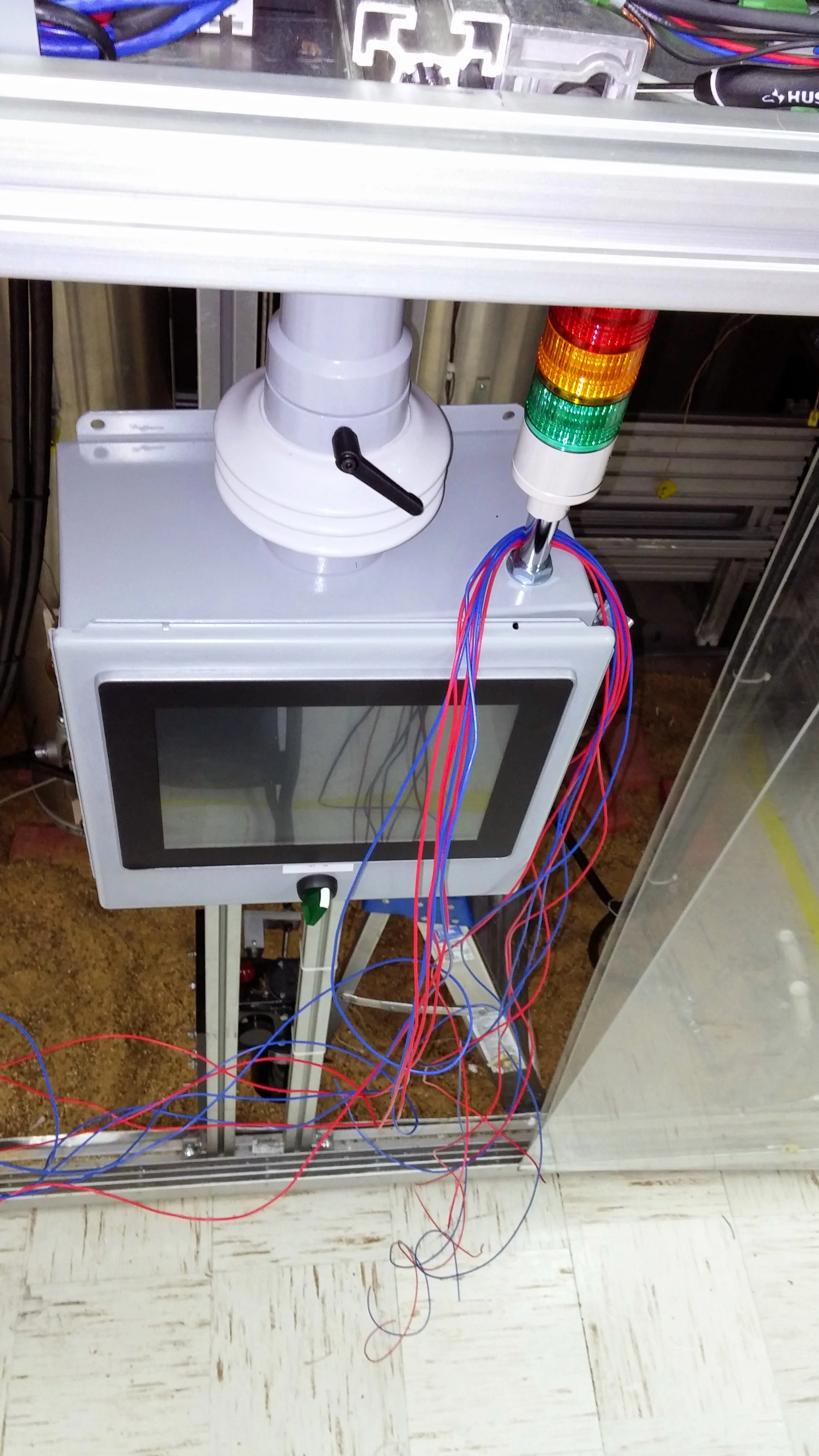

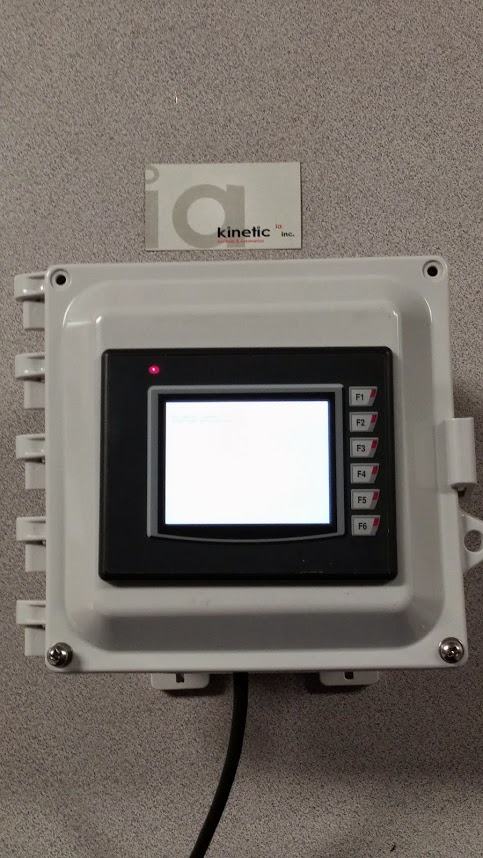

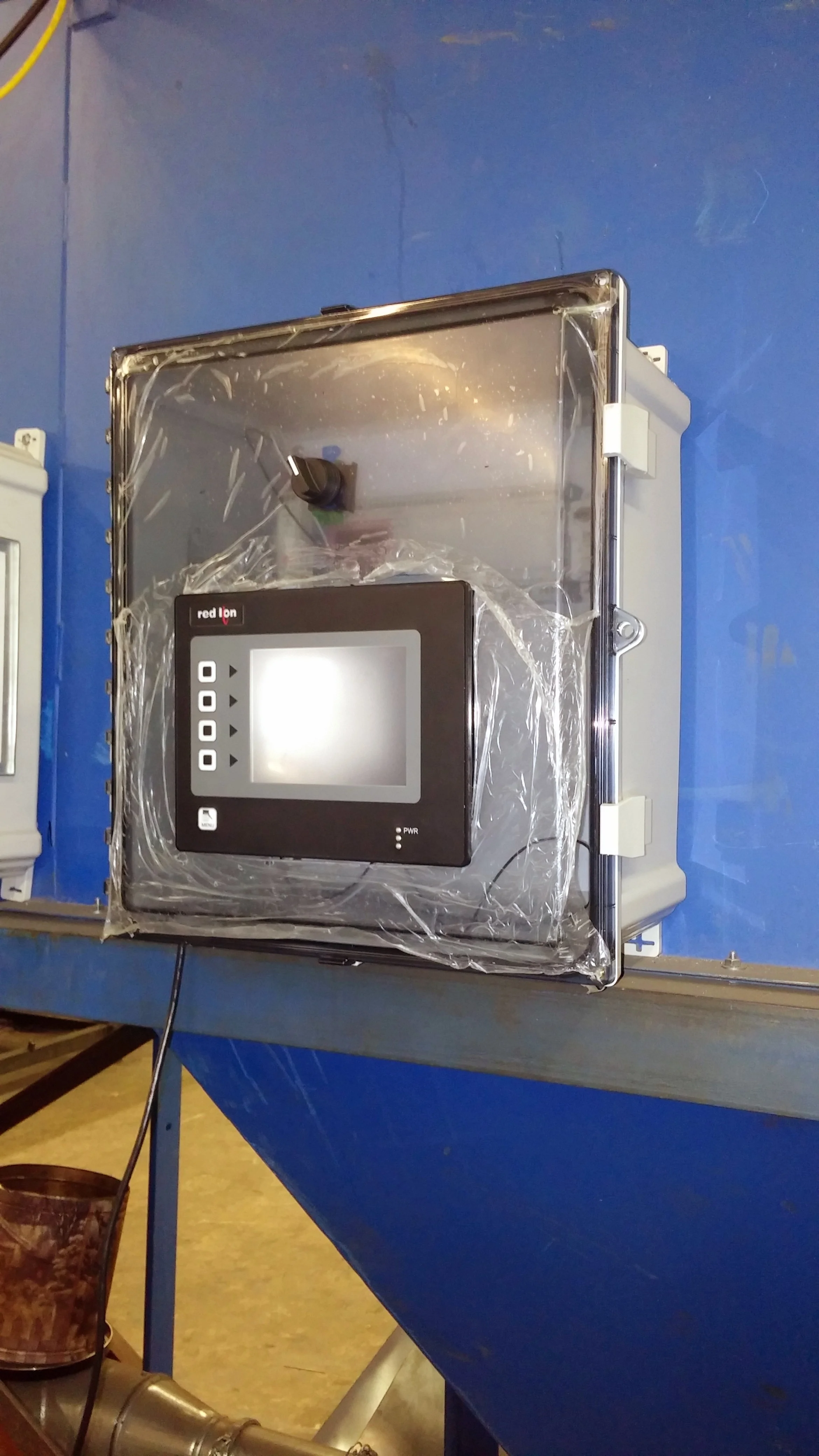

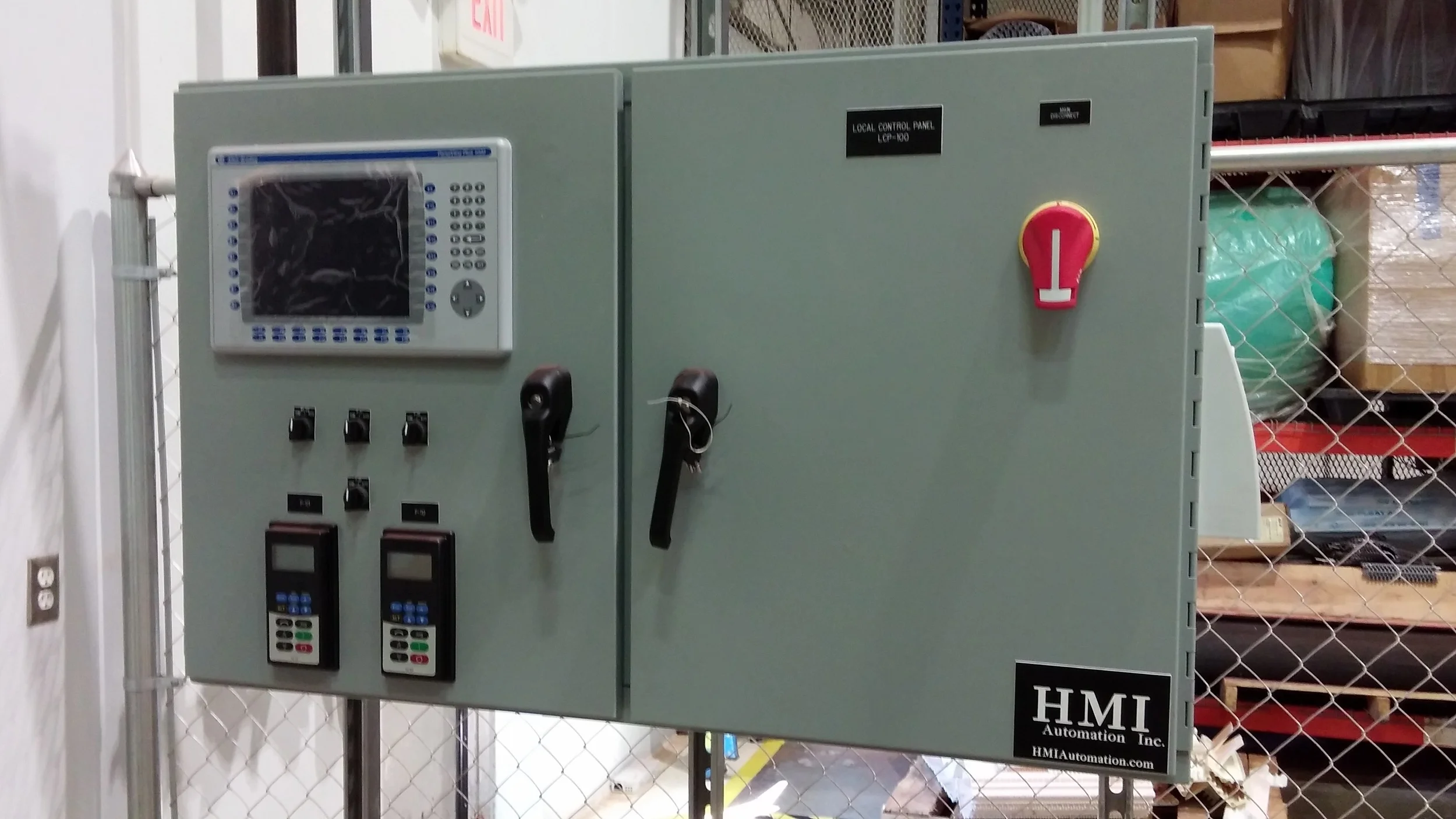

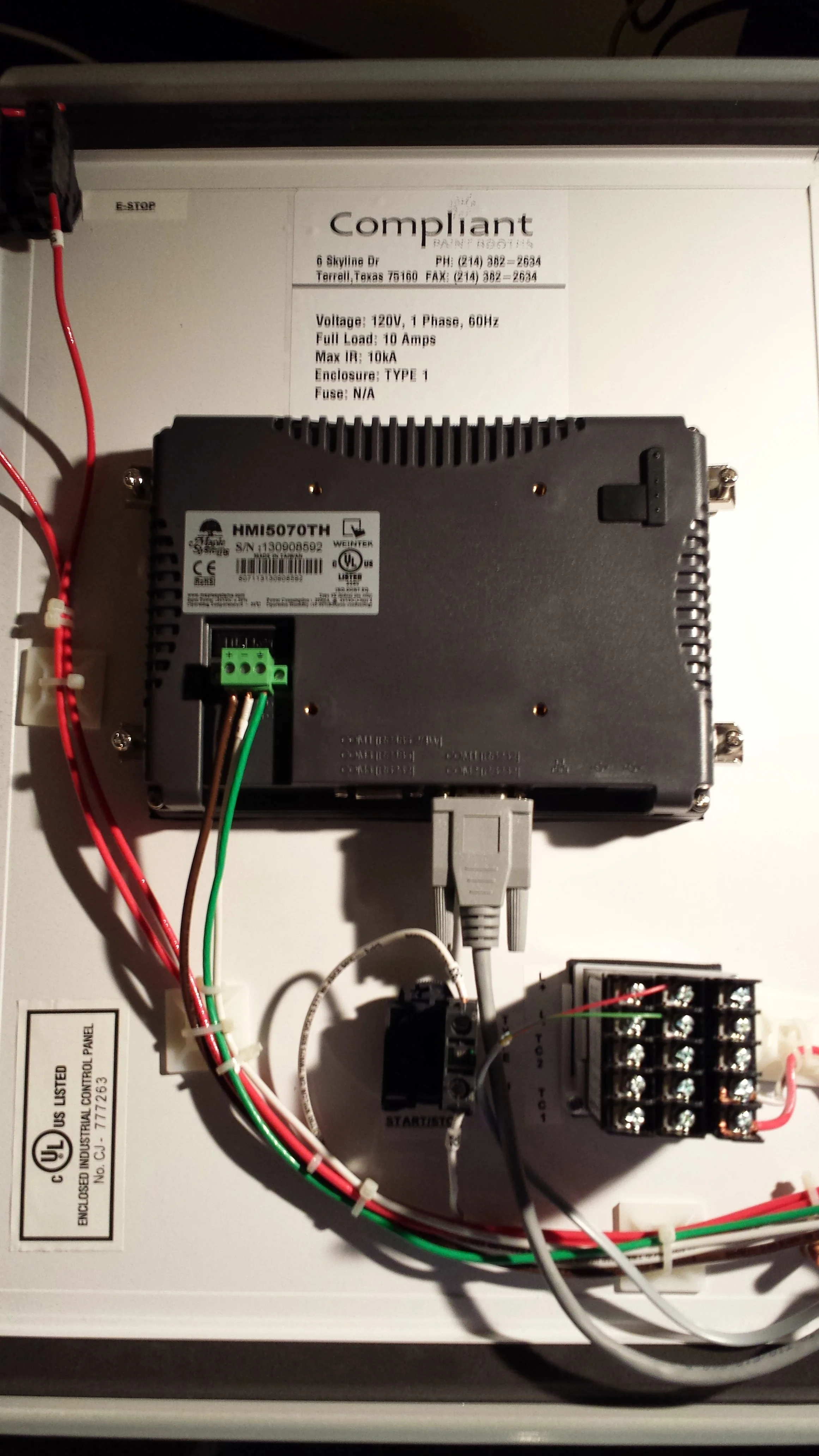

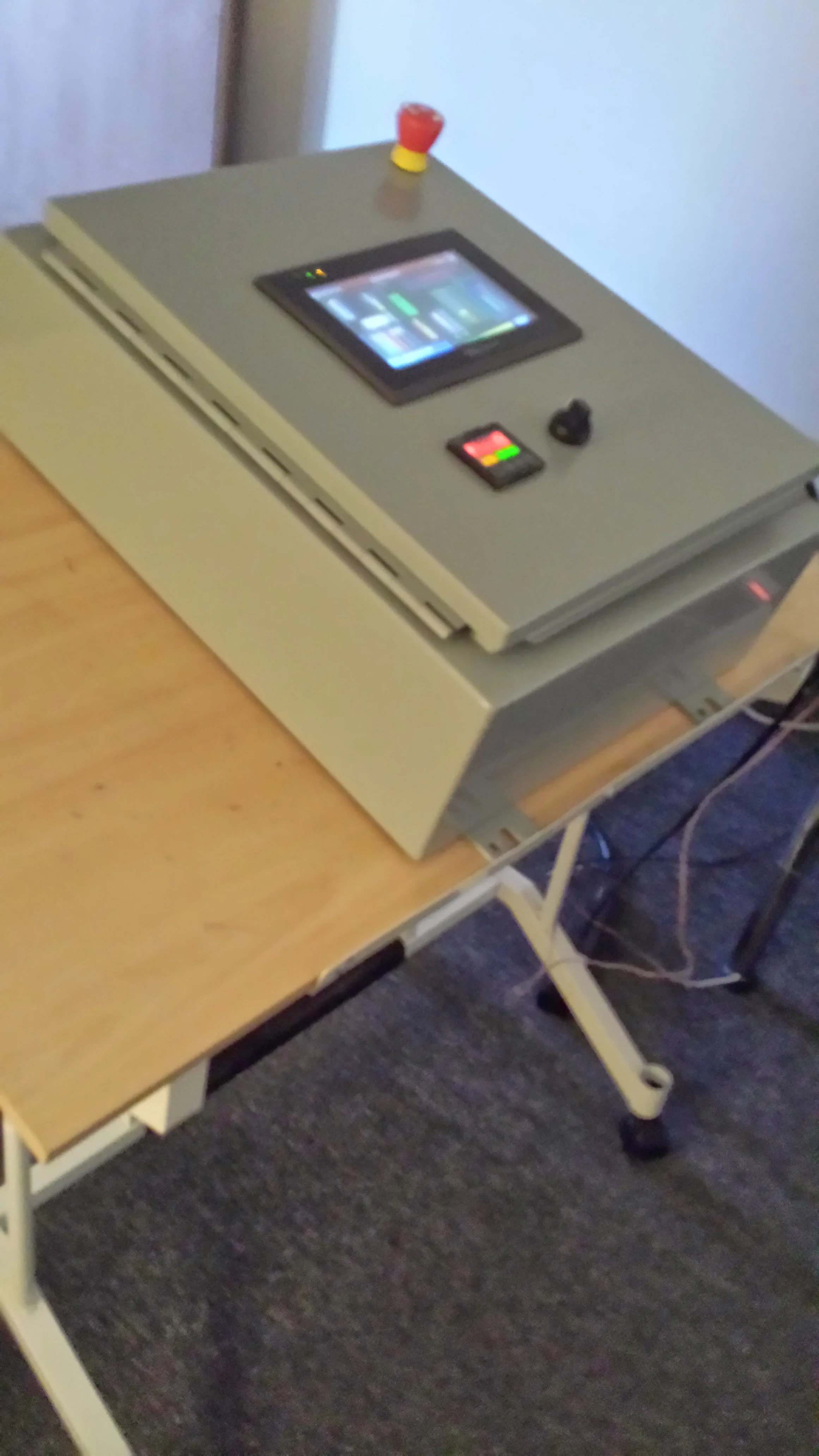

HMI Control Panels

HMI is the acronym for Human Machine Interface which, simply put, is an interface between a user and a machine. HMI is a term specific to manufacturing and process control systems. An HMI provides a visual representation of the status of a control system with real-time data acquisition.

HMI's can also act as the centralized control unit for manufacturing lines as they are usually equipped with non-volatile memory containing data recipes, can execute event logging and event triggering, and can provide video feed for status monitoring. For a manufacturing line to be integrated with an HMI, it must first be connected to a Programmable Logic Controller (PLC) or Motion Controller. It is the PLC/Motion Controller that takes the information from the machine sensors and converts it into Boolean algebra to communicate with the HMI. From factories to extreme remote locations, IndustLabs HMI control panels enable customers to easily connect, monitor and control processes across a diverse range of industries that include manufacturing, oil and gas and water/wastewater.

Motor Starter Control panels

We build Multi-Motor Starter Panels with many different branded Motor Circuit Controllers and Contactors, or a combination of other components. These panels can be designed for mounting on DIN-Rails or 3-Phase Power Bus Systems. Variations can include multiple softstarters in a double door enclosure.

We Make Superior Enclosed Products and Custom Panels up to 900 HP

IndustLabs is your preferred builder for custom motor control panels. Our panel shop builds a wide variety of custom controls from small and simple two starter enclosures, to large complex multi-softstarter, in single or double door panel styles. Our knowledgeable team can design your panel for custom applications to meet UL/cUL, CSA, ATEX, CE and various other standards.

Custom Control panels are available in a wide variety of custom combinations and configurations. We work with you closely and custom orders can also be accompanied by approval drawings and schematics.

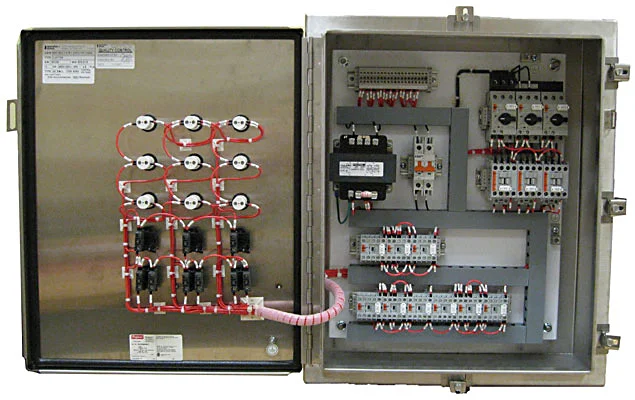

Custom Across-The-Line Combination Starters

Custom designed panels combining starters, softstarters, overload protection, transformers and other components to meet specific enclosure and application needs.

Explosion Proof Starters Type 7/9 Groups B through G

From standard OEM to exotic custom enclosures, we have extensive experience catering to the needs of explosion proof custom control panels.

Multi-Speed and Reduced Voltage Starters

IndustLabs panel shops build various types of Multi-Speed and Reduced Voltage starters for industrial control applications in both Fusible and Non-Fusible models.

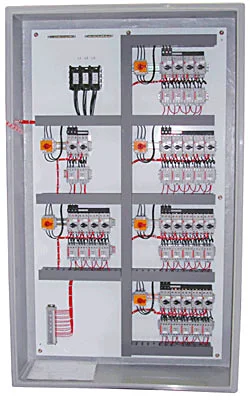

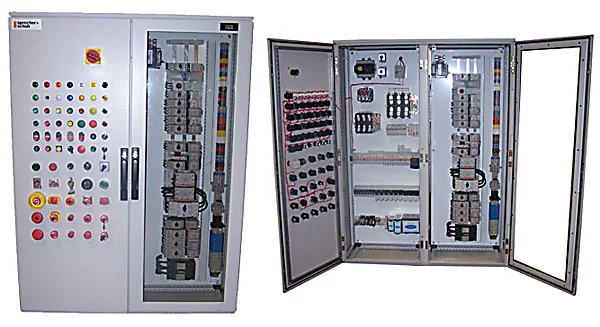

Multi-Motor Starter Panels

From two to two hundred twenty motor controllers, we design custom panels containing modern controllers, multiple contactors and many other components.

Duplex Pump Panels

Custom Control panels for Duplex applications can be built to customer specifications, including stainless steel enclosures and/or unique components.

What Can We Build For You?

Regardless of your industry or custom control panel needs, IndustLabs has the experience and manufacturing facilities to design and build your panels. We have an experienced engineering and quality control team dedicated to providing the best solution to your custom control needs. Our manufacturing facilities in Dallas and Houston are staffed with experienced wiring and installation technicians, ensuring your custom panel meets safety and performance criteria. Contact Us for more information regarding what we can build for you.

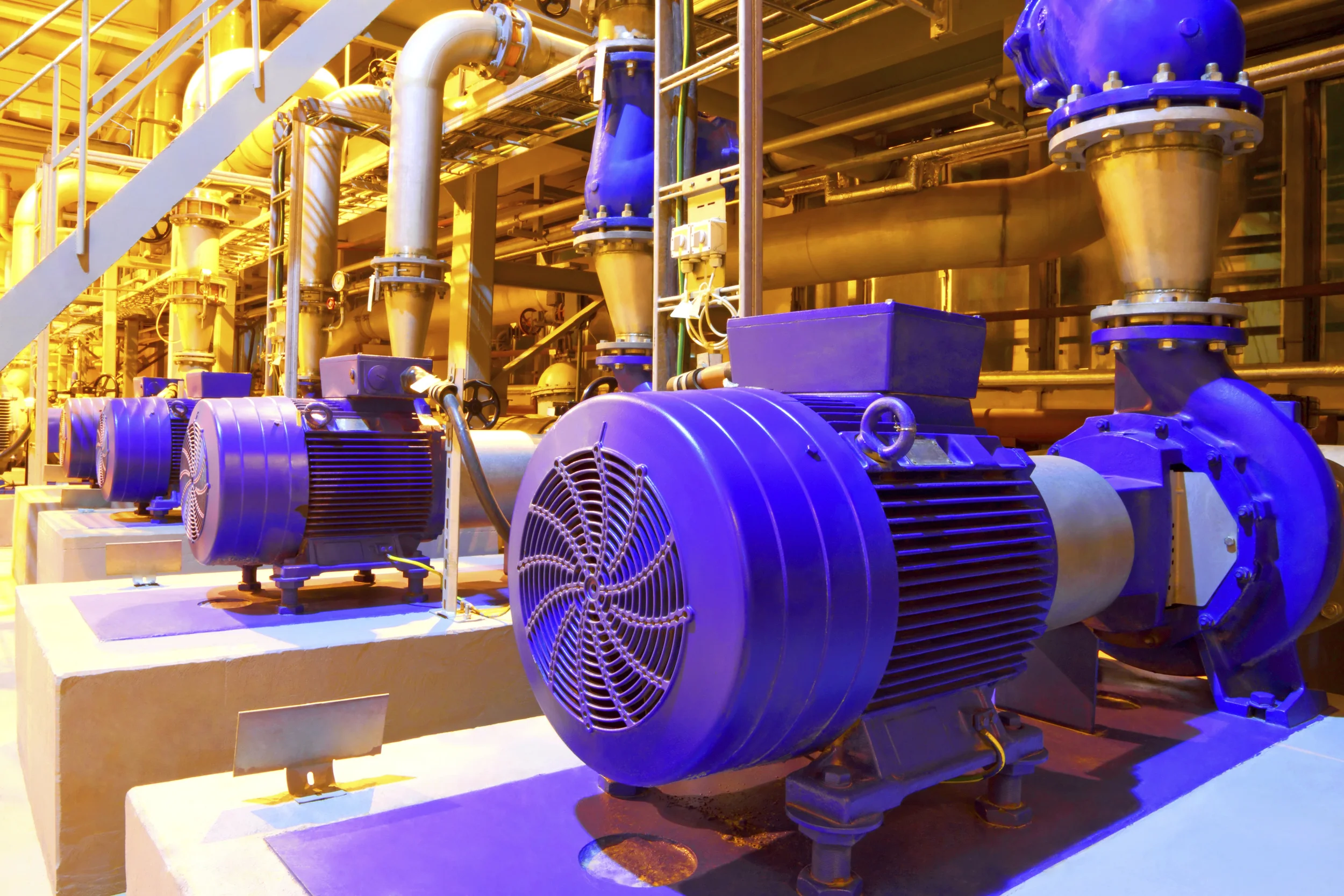

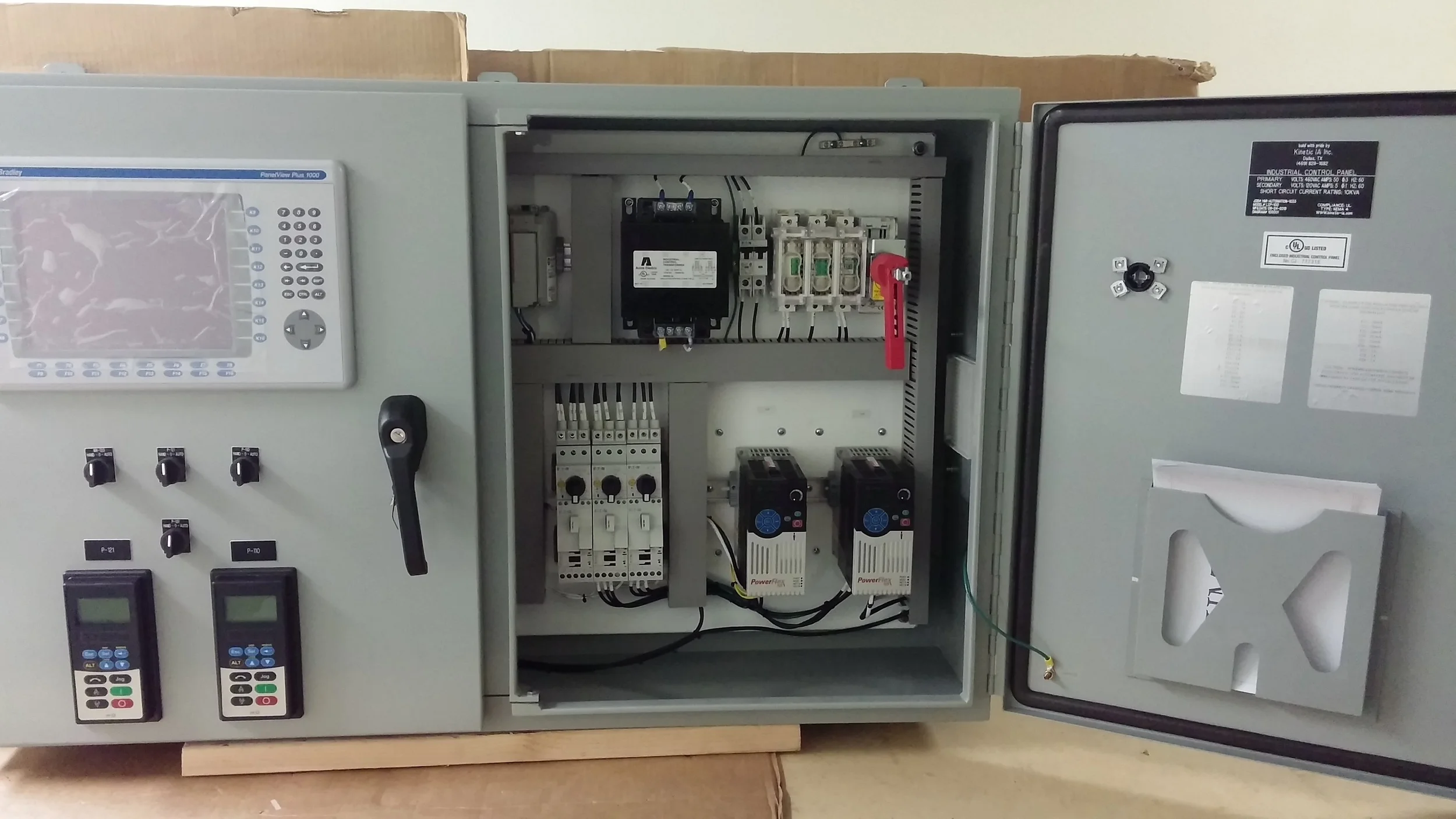

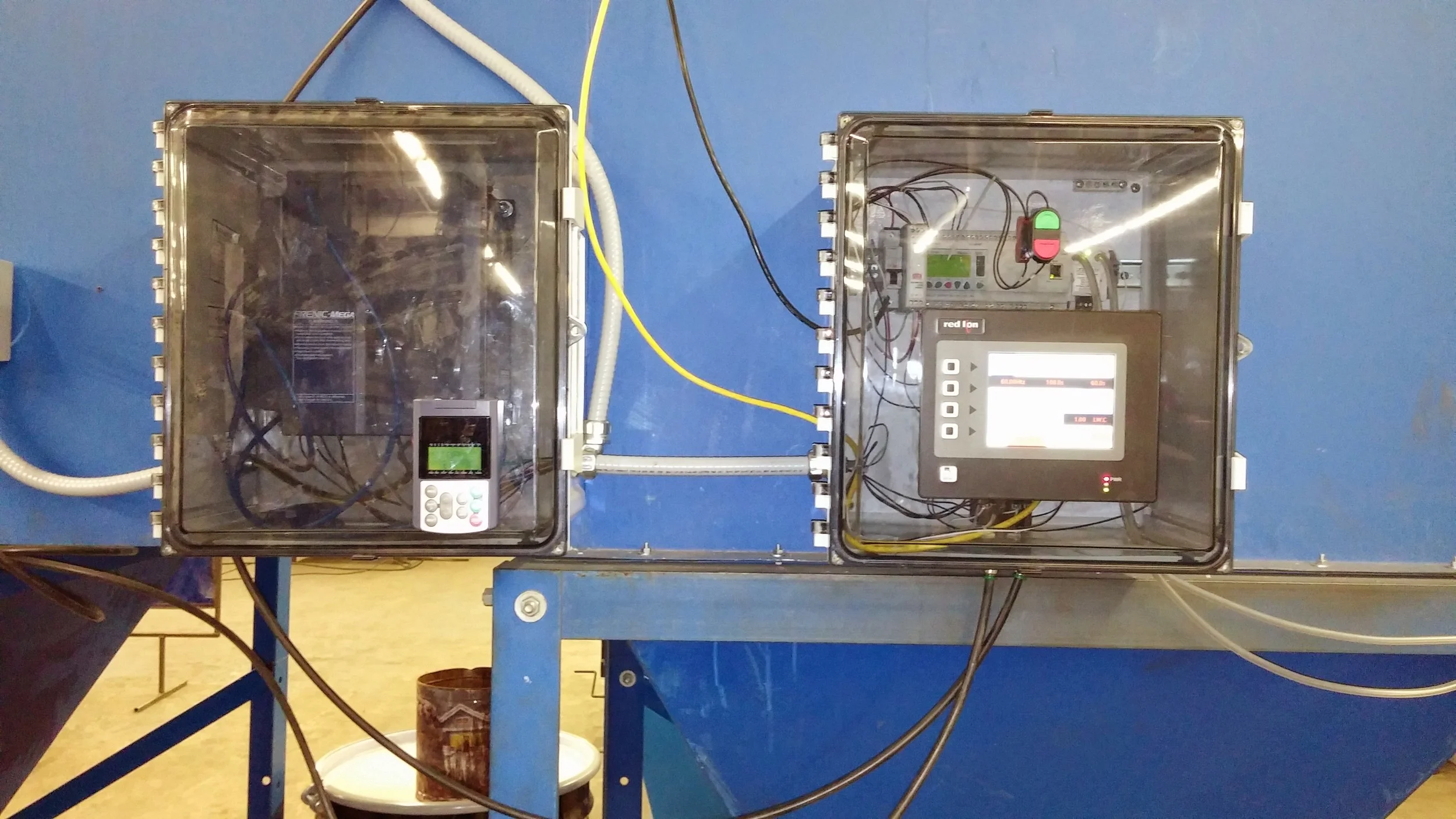

VFD Control panels

The VFD Panel (Variable Frequency drive panel) also known as VFD Control Panel are designed to control the speed of electric motor and feed pump. They are widely used in drilling, pumping and other large machine applications. The VFD panels are widely used in extruder plants, rolling Mills, tube mills, paper mills, cable industry, and pump industry.

Adjustment of the speed of the motor is the application, which is required in all the process industries & machinery Mfg.'s. Variable Frequency drive is used as energy saving device for some of the machines to save power during no load or it is used as final control element of the closed loop control application where the speed of the motor is changed to control one parameter. Some of the application is provided with manual speed control of the motors. These are the open loop control applications.

Paint Booth Control panels

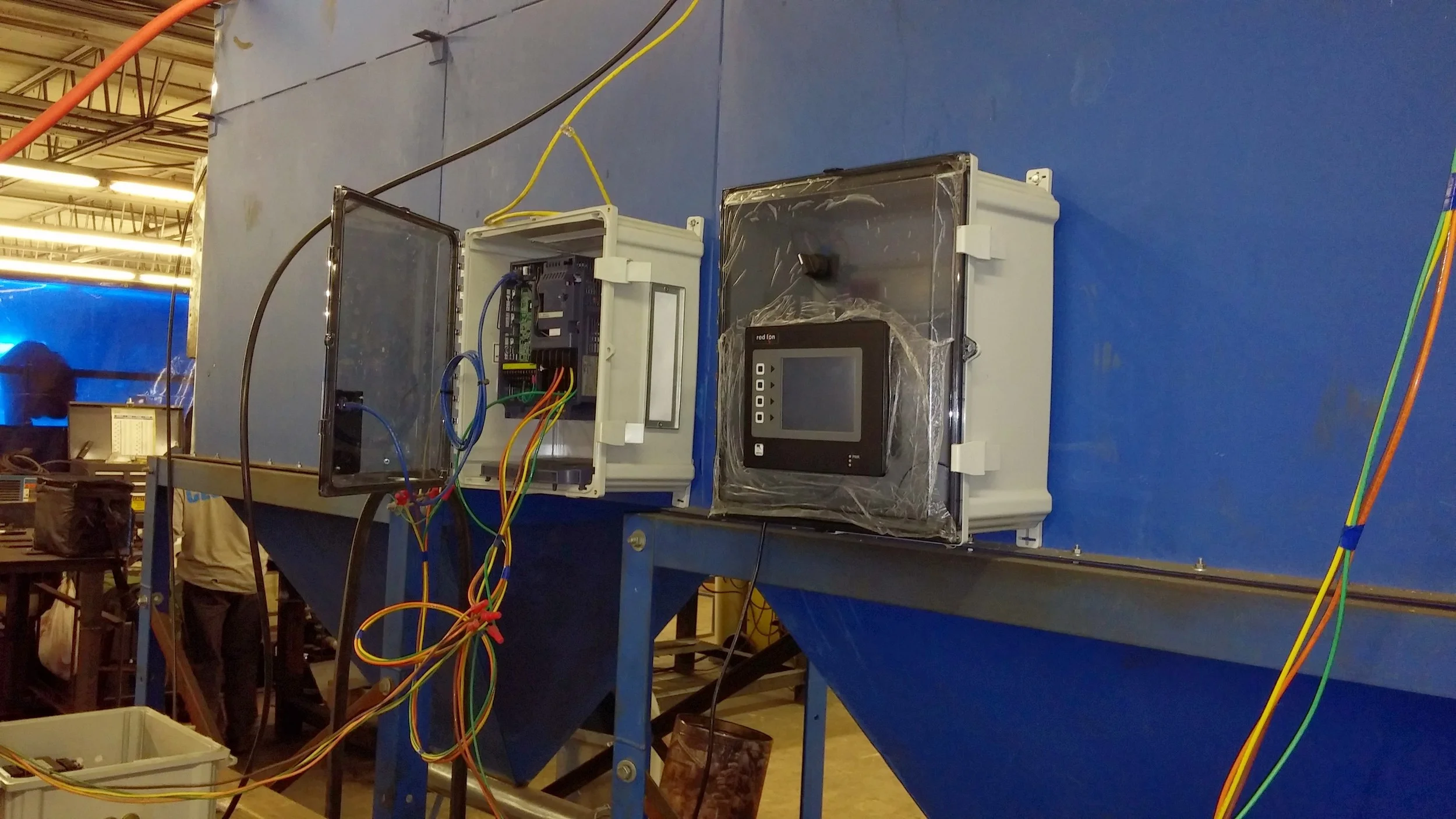

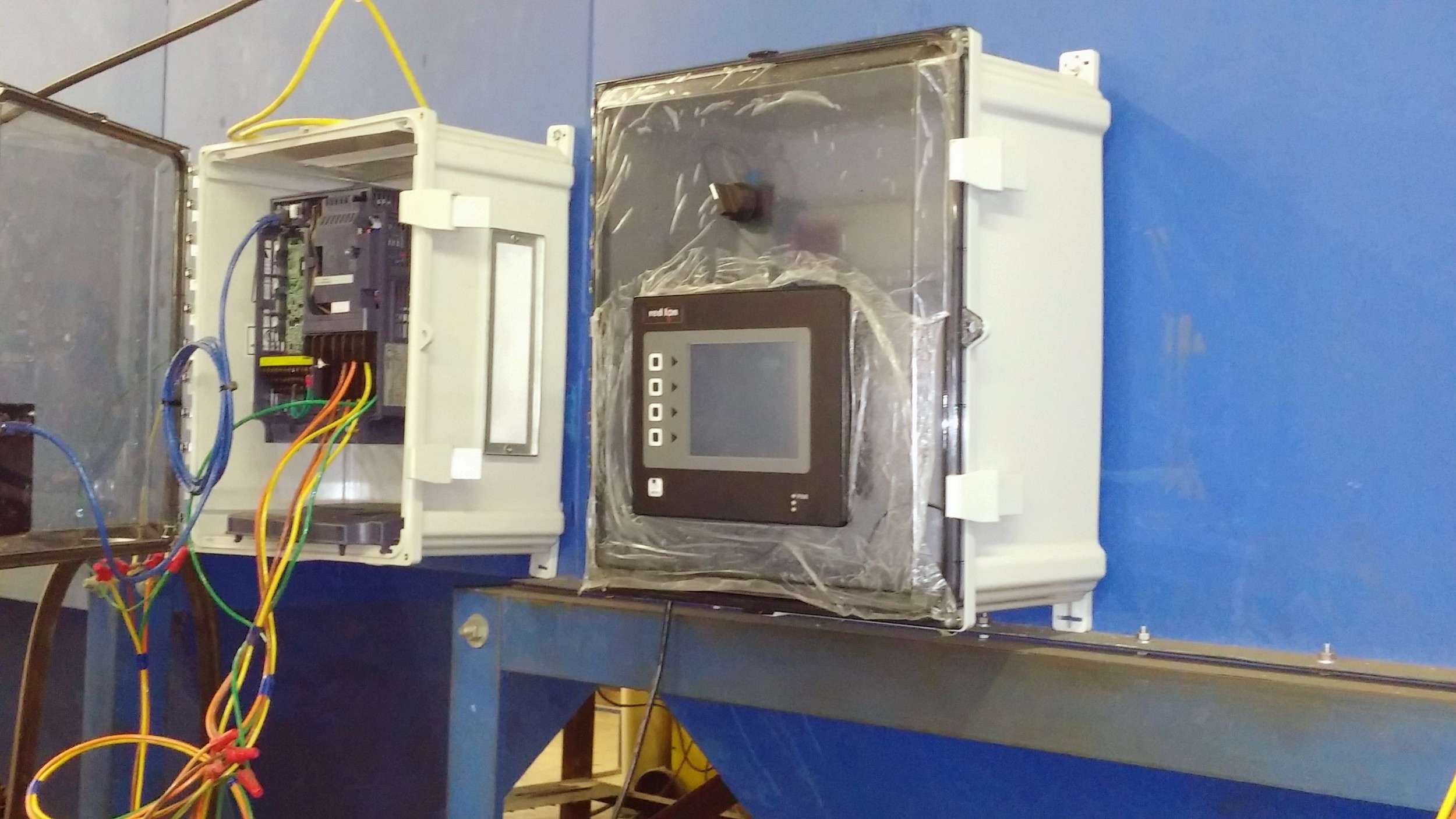

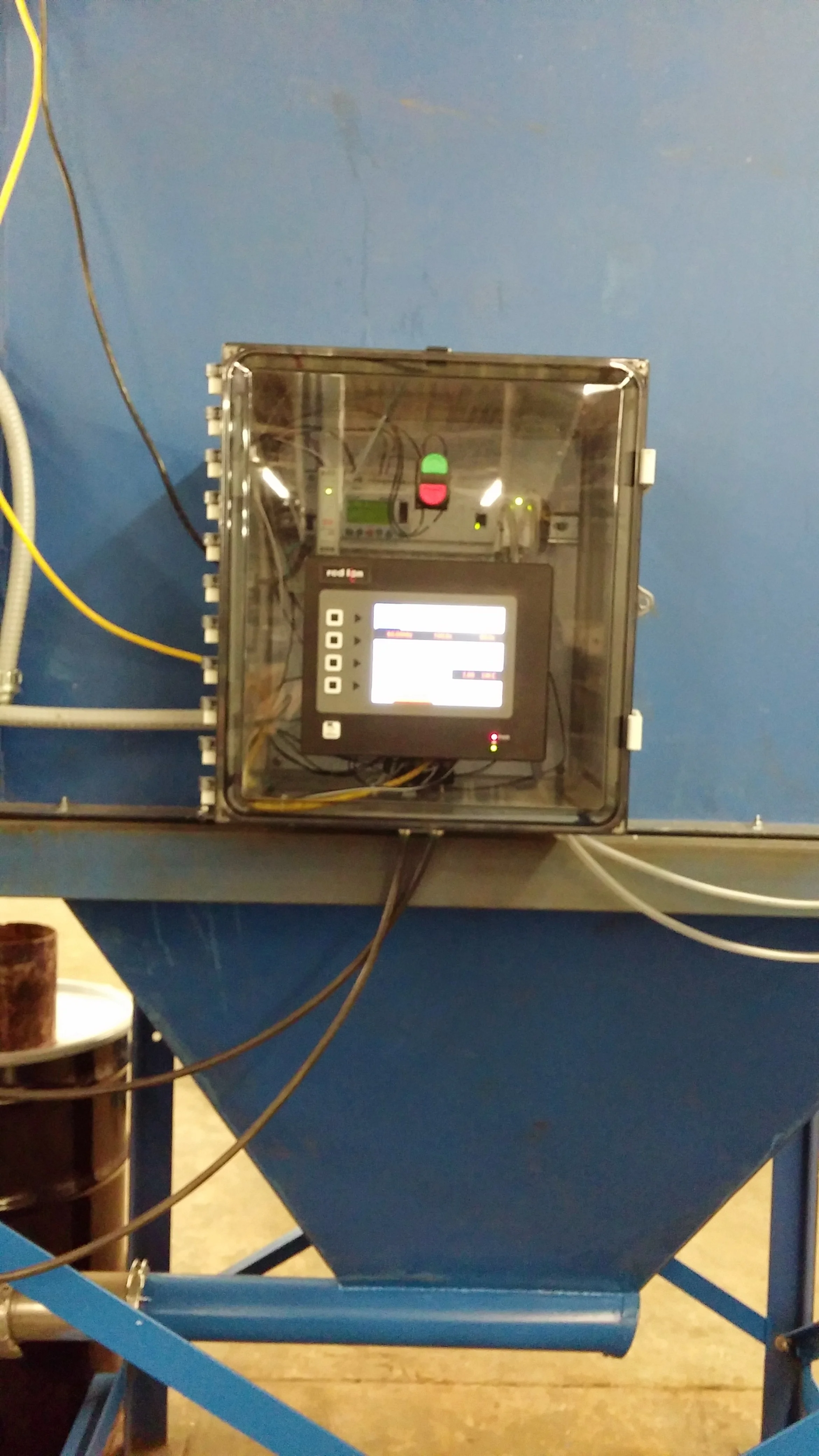

INTEGRATED CONTROL PANEL FOR INDUSTRIAL DUST COLLECTORS

BUILT FOR: Dust & Fume

KEY FEATURES:

  • Pulse cleaning controls

  • Dirty filter pressure monitoring with digital display

  • Motor starter with fuses, heaters, and disconnect

  • Start and stop buttons

  • NEMA4 housings

ALL-IN-ONE CONTROL PACKAGE

Let IndustLabs supply you with a complete industrial dust collector system by pre-engineering the control package. The Integrated Control Panel includes:

  • Pulse cleaning controls

  • Dirty filter pressure monitoring with digital display

  • Motor starter with fuses, heaters and disconnect

  • Start and stop buttons

  • NEMA4 housings

STANDARD FEATURES AND BENEFITS

  • Pre-engineered control panels available to ship with your facility.

  • Optional items:
    Variable frequency drive for precise fan control
    Airflow meter
    Alarm inputs for level probe
    Airlock & screw conveyor controls

  • All voltages available:
    230V/460V
    208V
    575V

  • Fan KW from 0.75KW to 150KW

  • 50Hz & 60Hz frequency

  • NEMA 4 water tight standard
    NEMA 7/9 available

  • Push buttons & lights standard
    Touch screen with PLC controls available

  • MOD/BUS communication protocols available

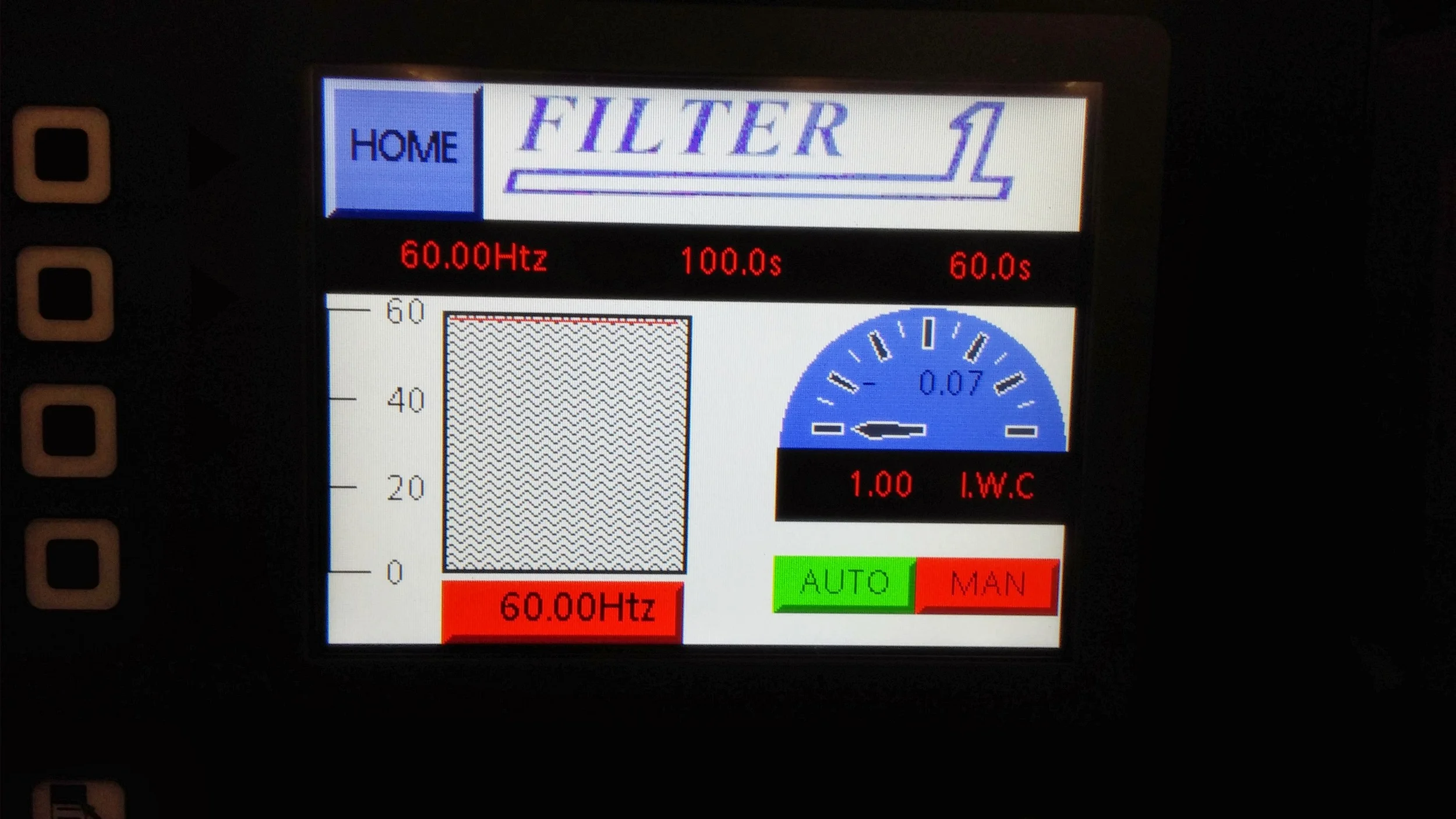

    INTEGRATED CONTROL WITH OPTIONAL VARIABLE SPEED DRIVE

Temperature Control panels

Temperature control panels are the brain of your heating system. They regulate the temperature and operation, managing safety, efficiency, and automation. Temperature controllers come with a wide variety of options, controls and accessories.

IndustLabs Temperature Control Panels are a self-contained temperature/process control panel that provides a complete SSR power control system design, eliminating the need to select, collect and assemble separate components. The preconfigured panels are ready to install, requiring only supply power, load and sensor hook-up. They are equipped with an modern microprocessor-based controller with on/off, PID and ramp/soak capabilities along with a tri-color display. These control panels are supplied with a thermocouple input jack and M12 female connector for RTD or process inputs.

Solar Battery Control panels

Solar, Battery Backup, Hybrid Power Systems, Custom OEM, & More!

IndustLabs Power & Battery Control Panels are prewired aluminum panels for a variety of applications. Our standard control panels have all of the necessary switchgear to hook up a charge/load controller to a solar array, battery bank and load. Similarly, our Power Online control panels feature everything needed to control a battery charger & backup system. The control panels may also feature power supplies, battery chargers, Class 1 Division 2 components, custom load panels, DC:DC Converters, DC to AC Inverters, and many other features.

We have the capability to manufacture control panels to both ISO-9001, as well as, UL508A standards. For more info, to get help choosing the right control panel for your application, or if you need to discuss a custom project, use the contact us form or give us a call at (469) 421-0-954
